project

Projects for implementation

Our company implements various turnkey projects in the field of stage design, including set design, production lighting and video, development and implementation of technological solutions: preparation and approval of stage plans, riders, and other documentation, camera work, and video content production. After reviewing the entire website, you can choose the basis for implementation. This page presents our most current offerings.

Project Basics

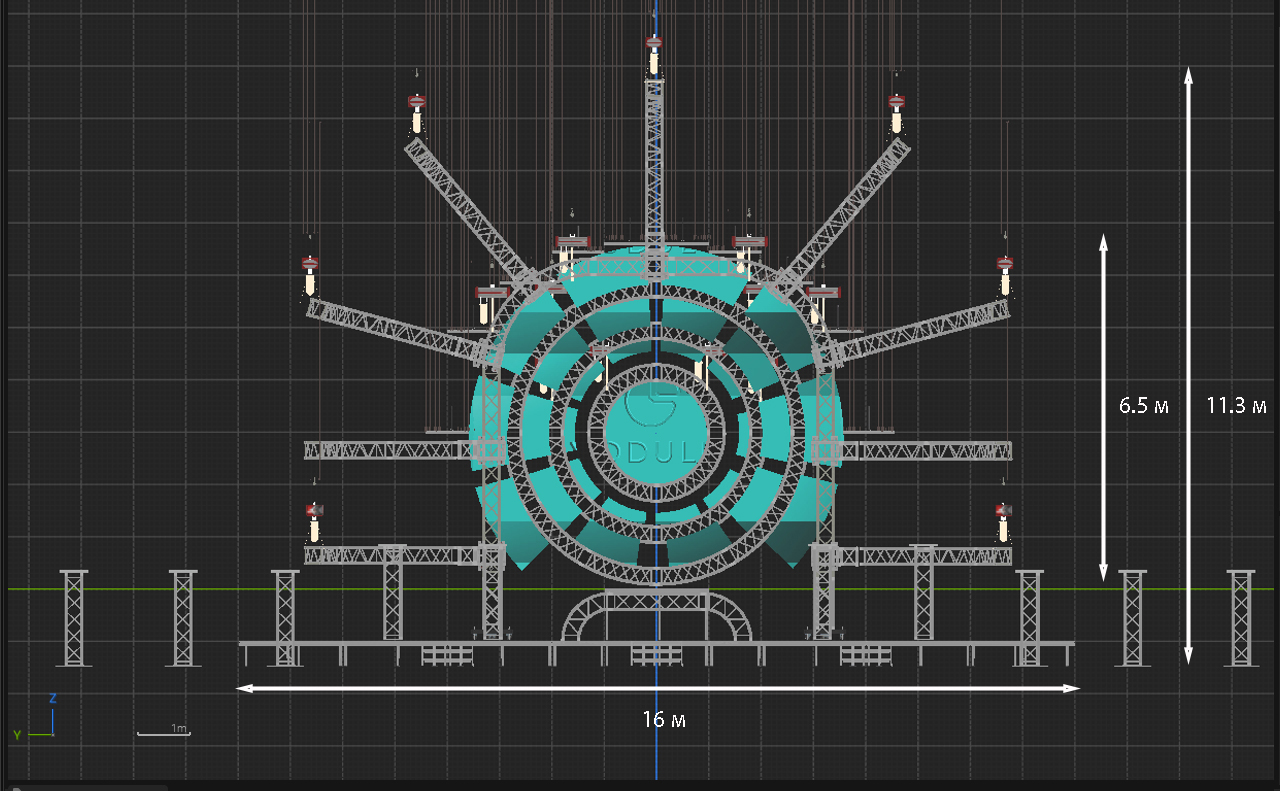

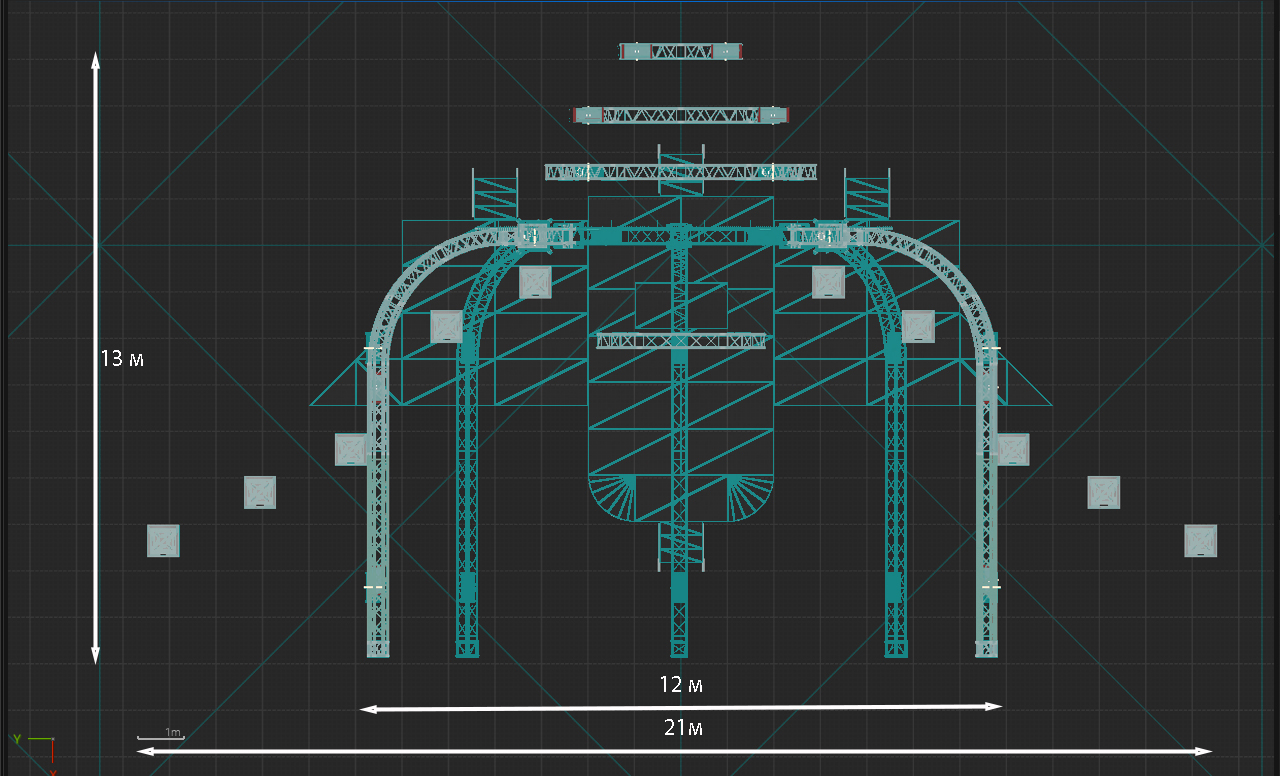

An example of developing a large club event

Project

Club space design. Lighting. Stage screens. Timecode. Control of connected external consoles.
Watch the demo video.
Documentation on request:

only for partners >

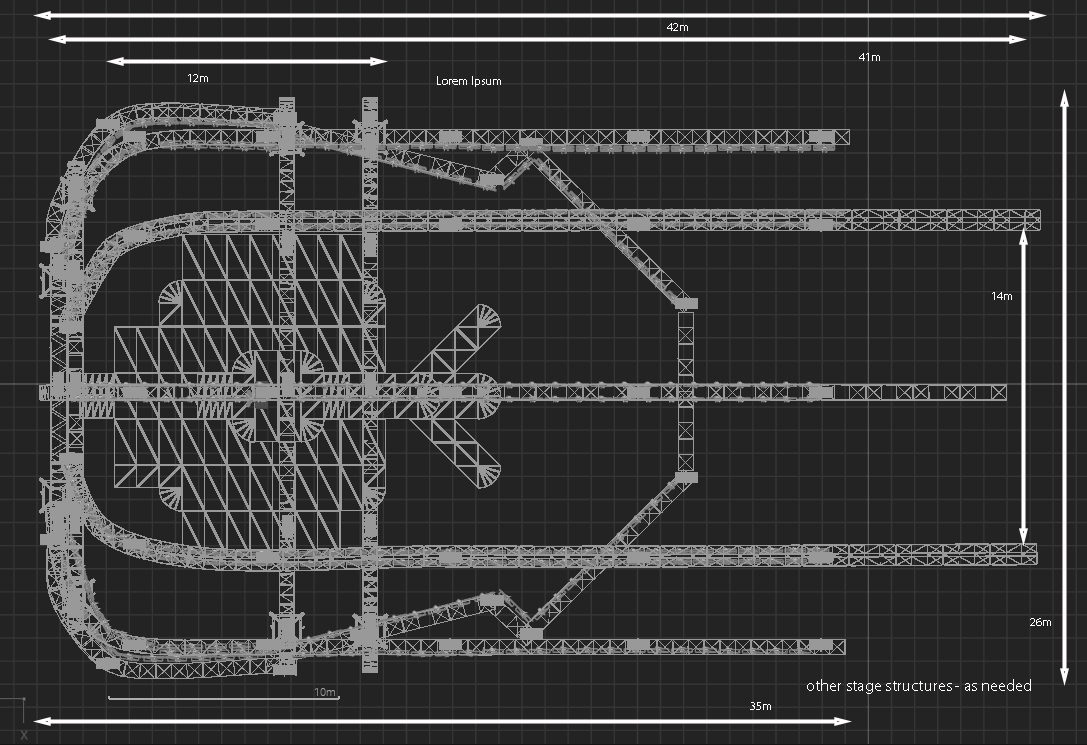

Stage mechanics

truss 400 15unit
truss 300 27unit
truss 180 10unit
truss block 9unit
truss pedestal 9unit
truss pedestal block 9unit
truss stand base 2unit
truss curved 550 diametr 12pcs 39unit
truss curved 390 diametr 8pcs 12 unit
truss curved 150 diametr 4pcs 4 unit
lifting motor Lodestar,min2t 27 unit.
Documentation on request:

only for partners >

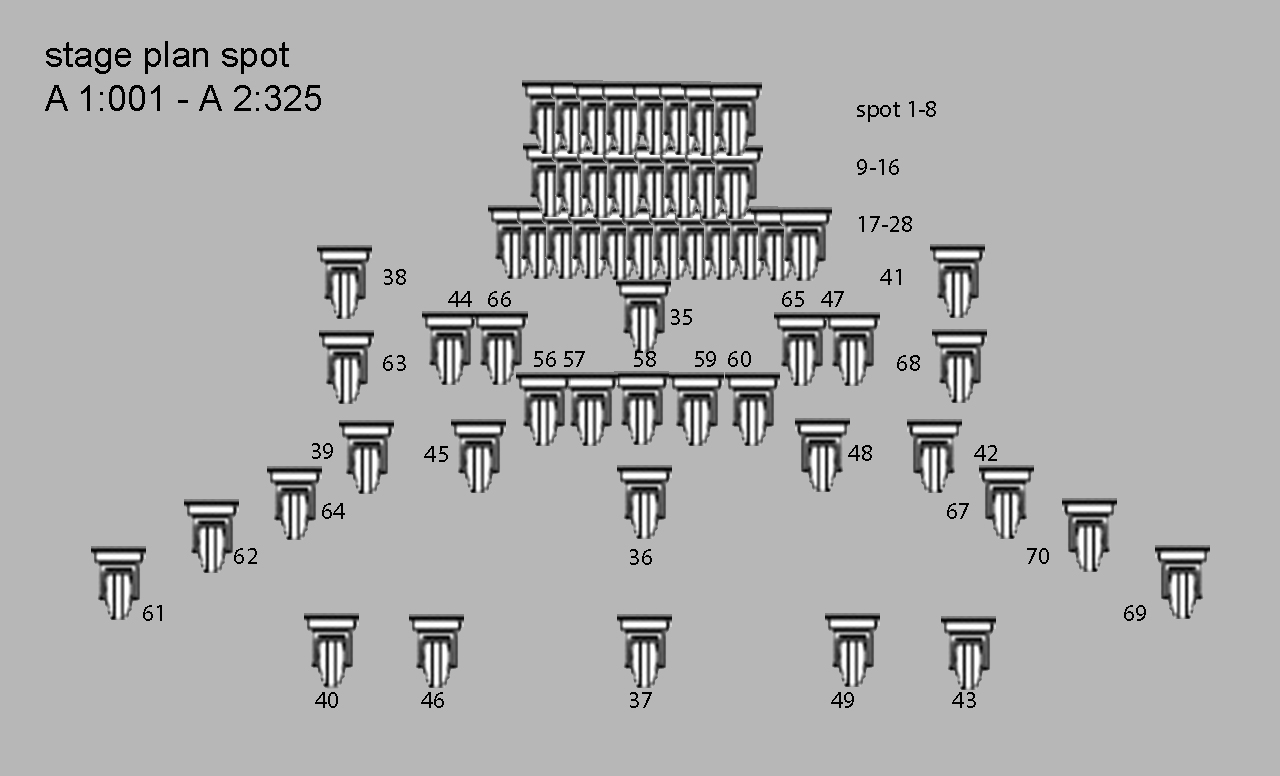

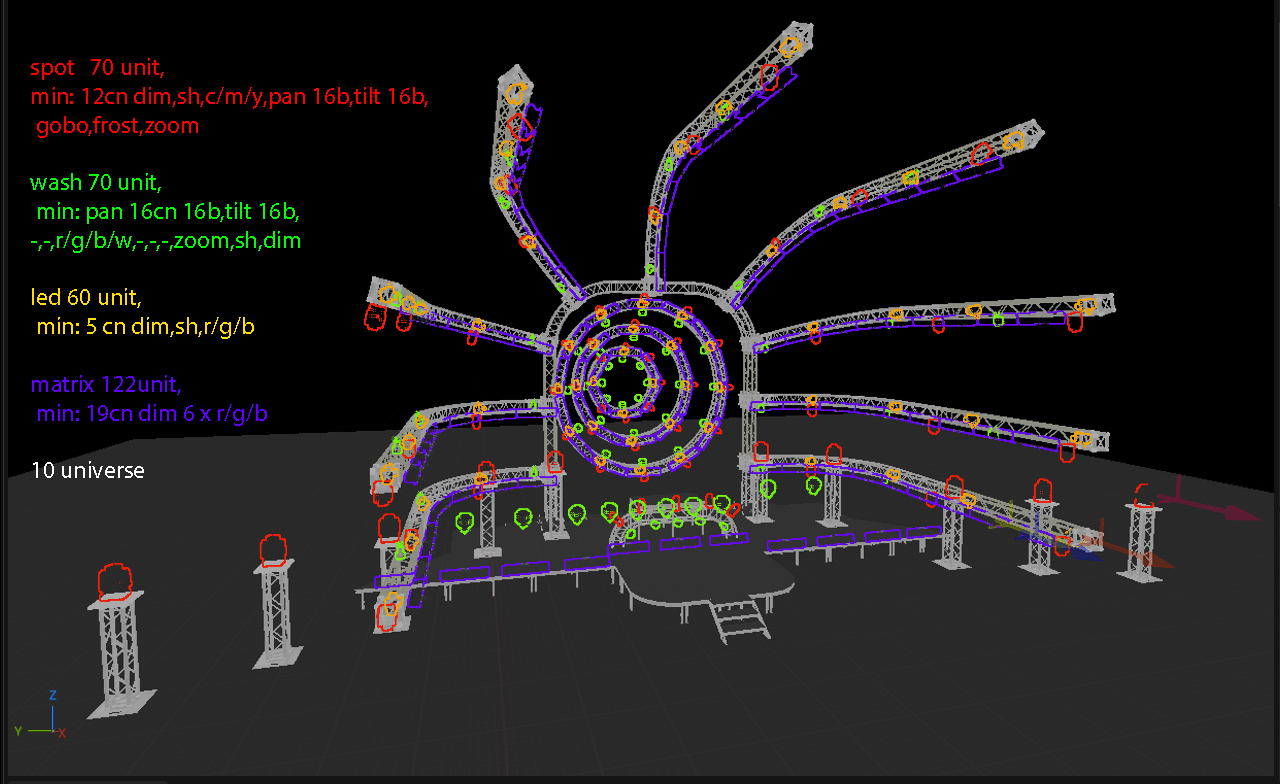

Lighting equipment

spot 70 unit, minimum requirements: 12cn dimmer, shutter, cmy, pan 16b,tilt 16b, gobo, frost, zoom
wash 70 unit, minimum requirements: : pan 16cn 16b,tilt 16b,rgbw,zoom,shutter,dimmer
ledpar 60 unit, min: 5 cn dim,sh,r/g/b
matrix 122unit, min: 19cn dim 6 x r/g/b
Number of universes - 10.
Documentation on request:

only for partners >

Project Basics

To add more cards, hover on a card and click 'Add items'

Video equipment

LED screen, pixel pitch no more than 4 mm
led screen (ring) total area 40 square meters, as needed
stage as needed. Video server and switching according to the rider.
Documentation on request:

only for partners >

Video content

It is manufactured based on the needs of the event and the final choice of video signal display means.
Documentation on request:

only for partners >

Hosting an event

The project was developed using the MagicQ lighting console. Depending on the event's needs, it can be performed using a time code or directly on stage.
Documentation on request:

only for partners >

Standard documentation package:

1. Project description and contract.
2. Technical rider (lighting, video, set design).
3. Estimated time for equipment setup and rehearsals.
4. Light show files, including patches and necessary components.
5. Video show files with video content.
6. Visualization files.
